Product Specifications:

Brand: EB-LINK

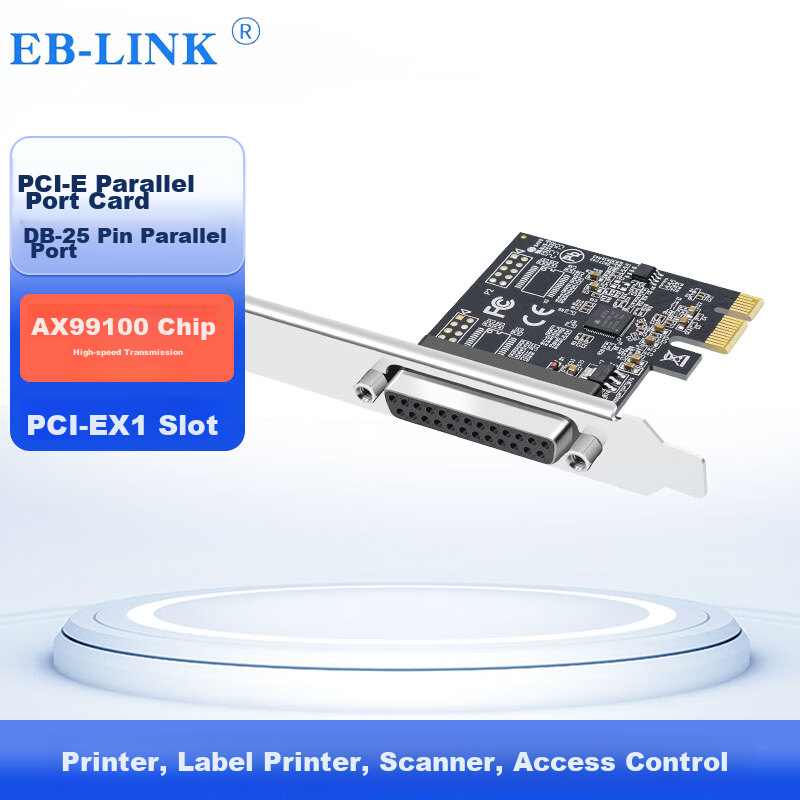

Model: PCIE x1 to DB-25 Parallel Port Card

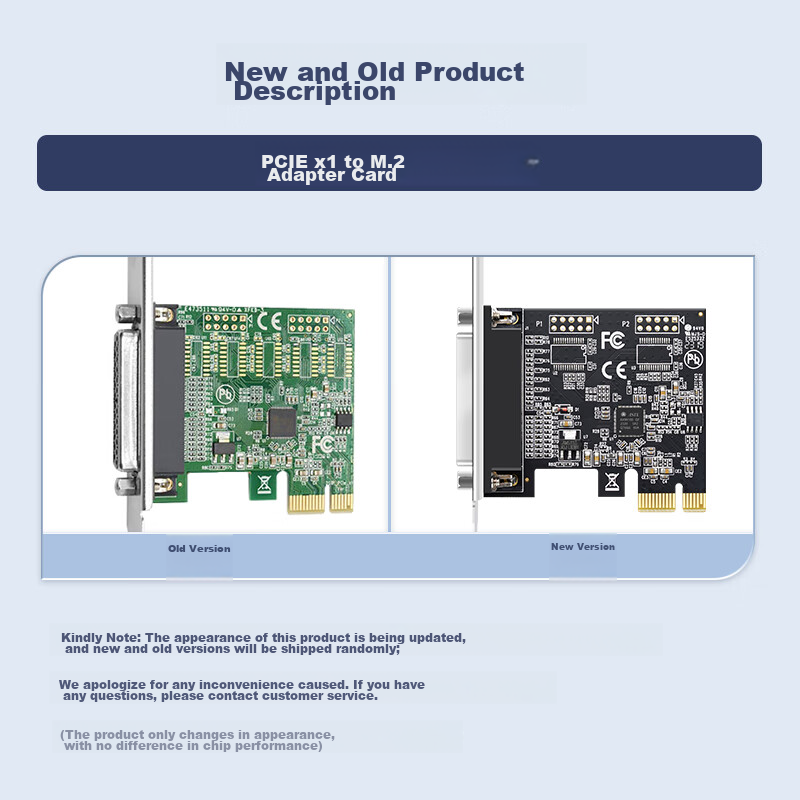

Versions: Old and New (random shipment due to appearance changes)

Features:

Automatically recognizes devices for quick and convenient use

Compliant with PCI Express card specifications

Equipped with independent power chip, operating temperature range of -40 to 85°C

Wide compatibility with various devices

Utilizes AX99100 main control chip for stable and durable performance

Supports high-speed transmission with PCI-E bus standard design

Compatible with devices such as tax control printers, scanners, access control systems, and label printers

Supports IEEE1284 printer port, PCIE slot, DB-25 parallel port

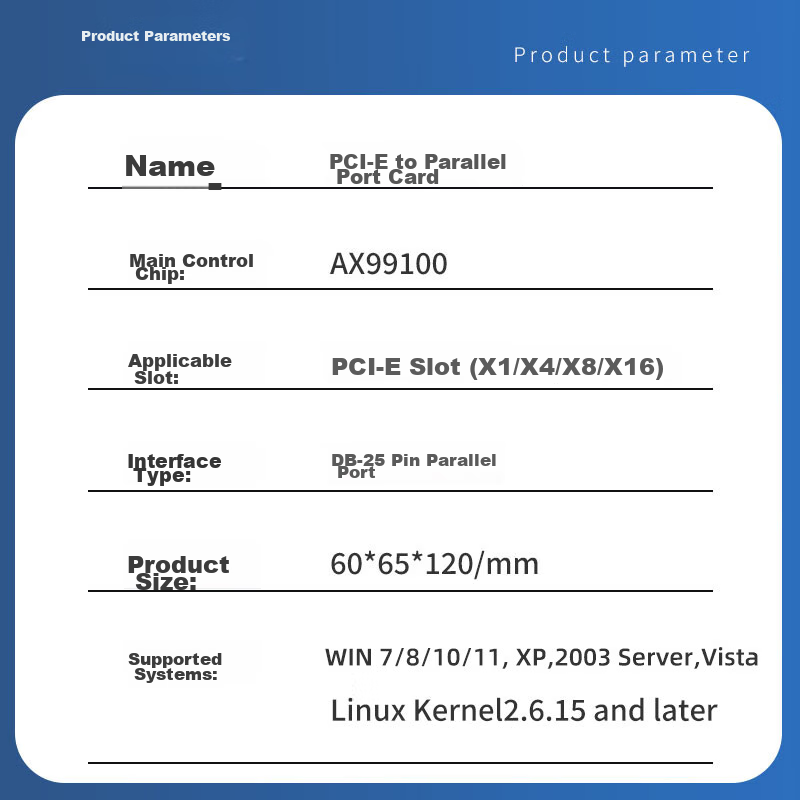

Product Parameters:

Main Control Chip: AX99100

Slot Compatibility: PCIE slot (X1/X4/X8/X16), DB-25 parallel port

Supported Systems: Windows 7/8/10/11, XP, 2003 Server, Vista, Linux Kernel 2.6.15 and later

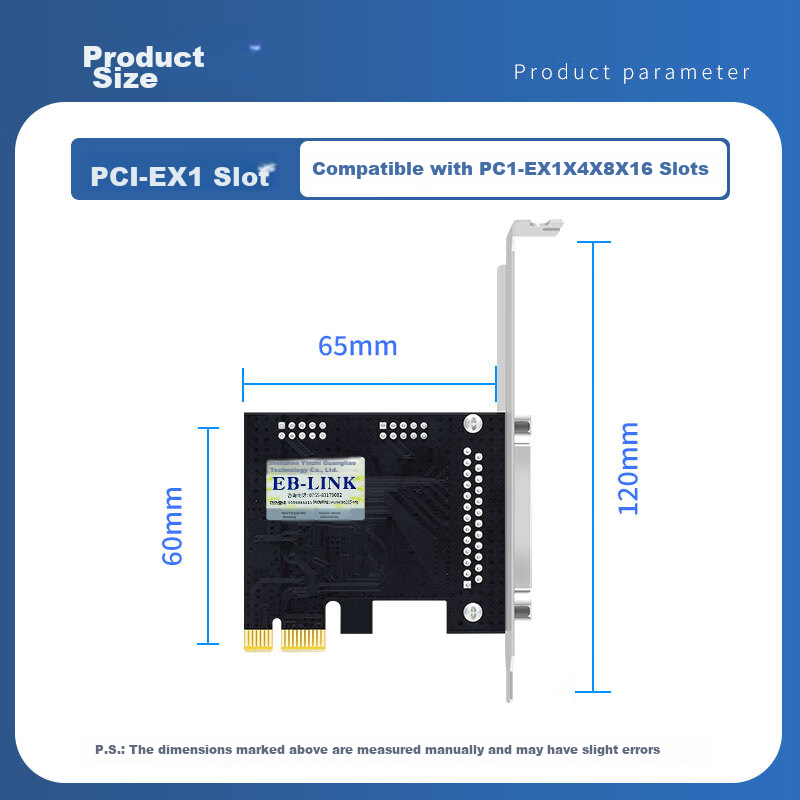

Dimensions: 60 x 65 x 120 mm (manual measurement may have slight errors)

Additional Information:

Do not install the adapter card in a PCI slot to prevent damage to the card, hard drive, and motherboard

Features thick gold-plated fingers for durable and stable high-speed performance

Not hot-swappable

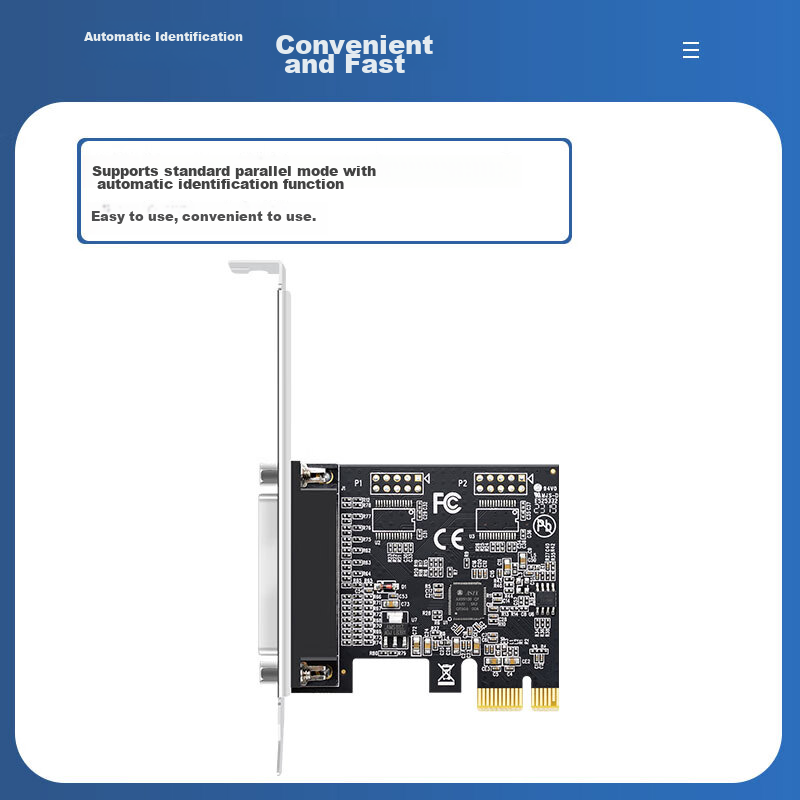

Supports standard parallel mode with automatic recognition function

Suitable for printers, card readers, industrial automation control devices, intelligent parking systems, access control systems, ATM systems, etc.
