**Product Specifications:**

**Brand:** UGREEN

**Product Name:** Cat6 Unshielded Crystal Head

**Model Number:** NW177

**Material:** PC Shell, Copper Contact

**Gold Plating Thickness:** 50U

**Network Standard:** Gigabit Network

**Interface Type:** RJ45

**Warranty:** One year

**Packaging:** Exquisite Bag Packaging

**Features:**

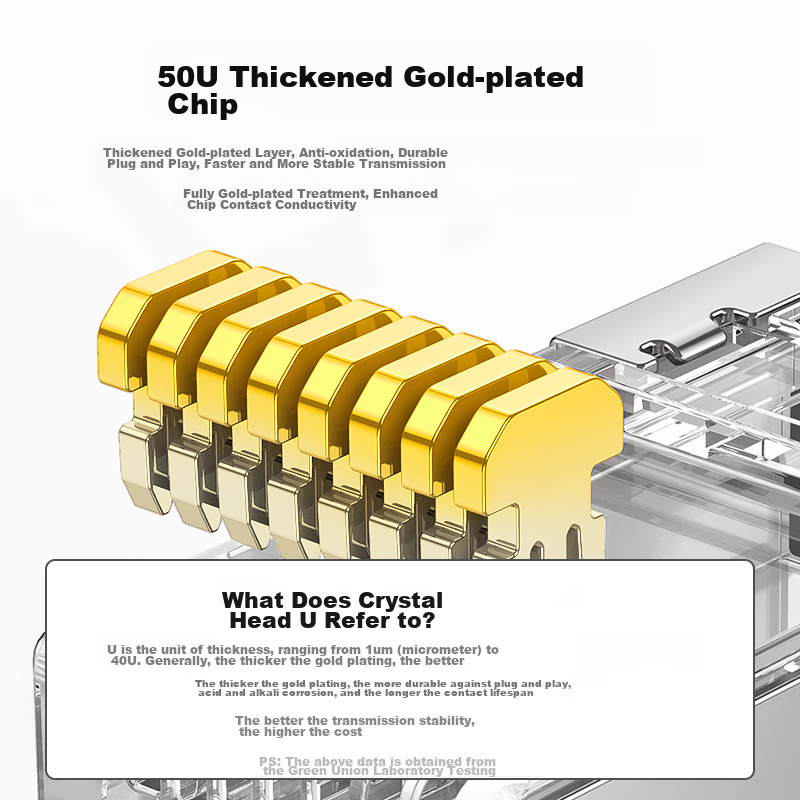

Thickened 50U gold plating for enhanced durability and stable transmission

Triple-layer chip structure combining pure copper, nickel plating, and gold plating for rust resistance and prolonged usage

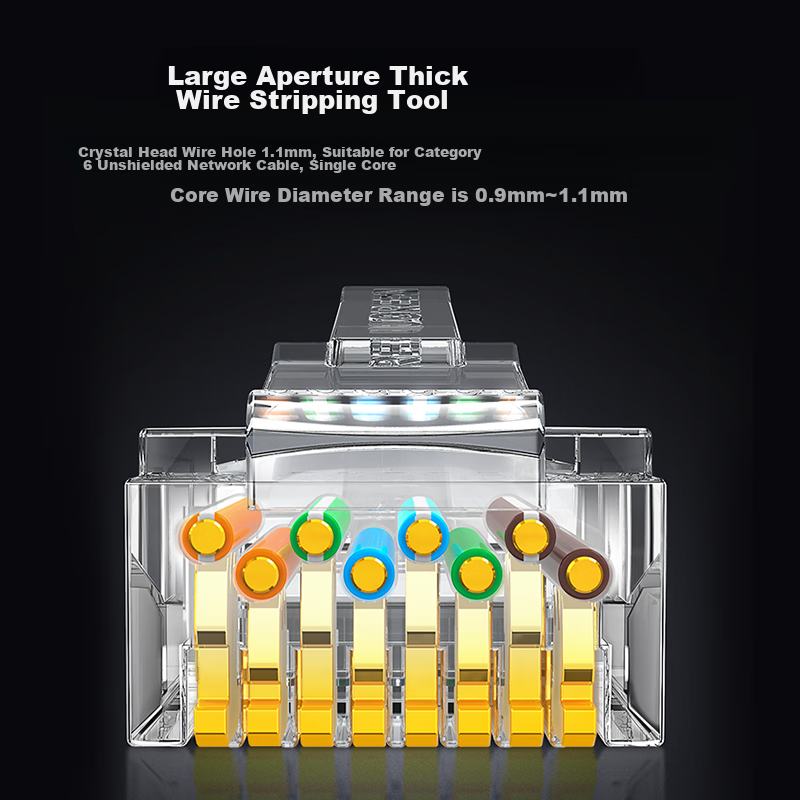

Large aperture design with thick wire core for stable and reliable connections

Transparent and wear-resistant PC material for a clear and durable appearance

Suitable for Cat6 unshielded network cables with a core wire diameter range of 0.9mm to 1.1mm

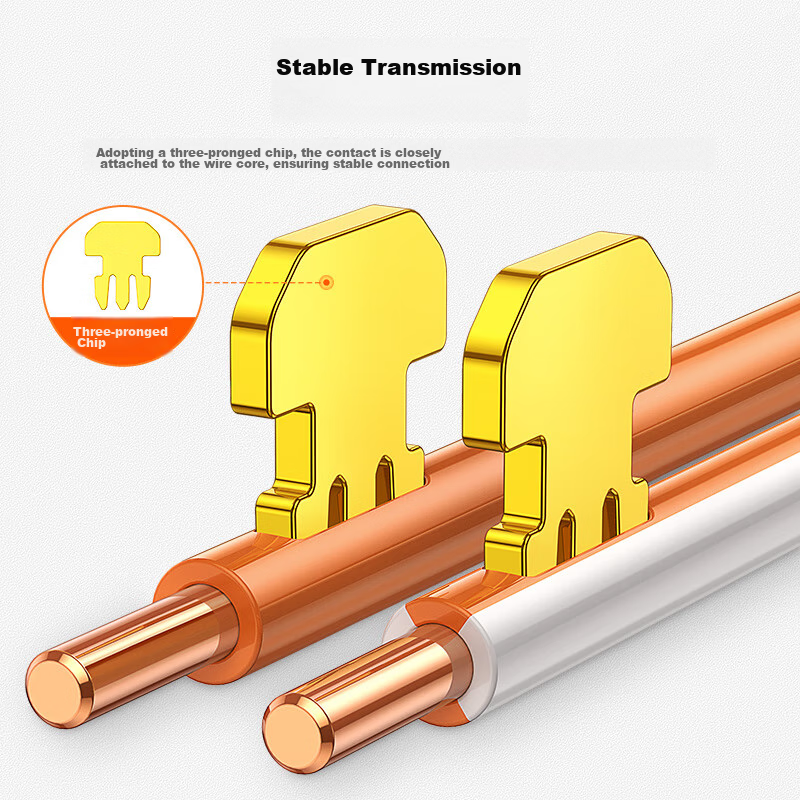

Equipped with a three-pronged chip for secure and stable contact with wire cores

Suitable for various applications including computers, switches, routers, TVs, and wireless devices

Ideal for home, office, surveillance, educational networks, data centers, telecommunication rooms, and internet cafes

**Installation Steps:**

1. Prepare a crimping tool and insert the wire into it, fix the wire and rotate to strip the outer layer.

2. Arrange the wire sequence: upper layer - orange, blue, green, brown; lower layer - white-orange, white-green, white-blue, white-brown. Choose T568A/B wiring as needed.

3. Insert the wire into the crystal head, align the wire sequence, and crimp the crystal head with the tool.

4. Check the wire sequence for accuracy and completion.

**Package Contents:**

UGREEN Cat6 Unshielded Crystal Head x 100

*Note: Dimensions are manually measured and may have slight errors.*

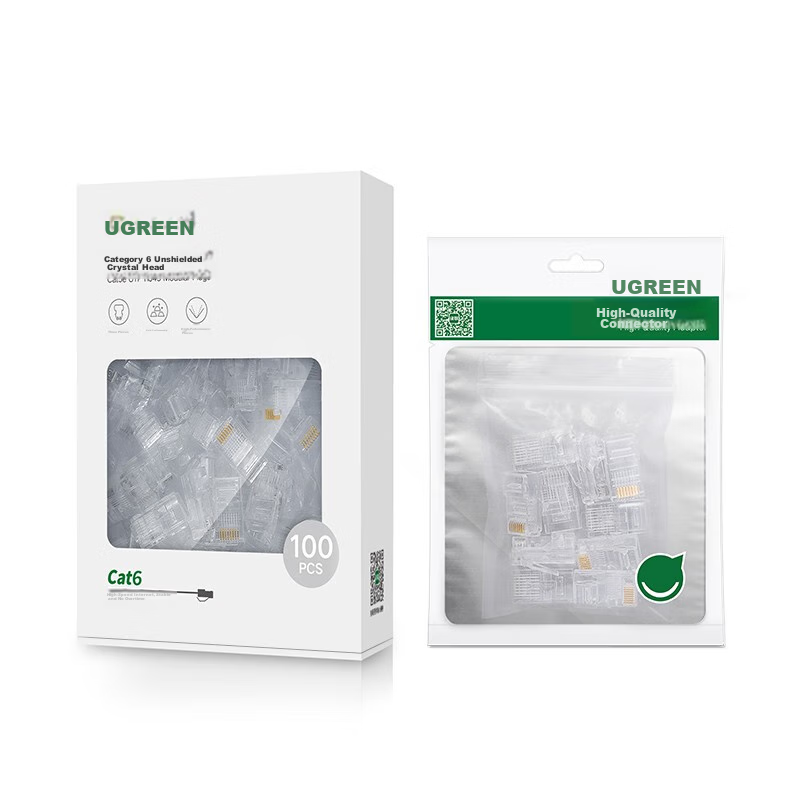

**Packaging Display:**

UGREEN Cat6 Unshielded Crystal Head - Cat6 UTP RJ45 Modular Plugs, High-Quality Adapter - 100 PCS, for high-speed and stable internet connections.
