BOYANG Telecom-Grade Fiber Optic Patch Cable, SC-LC (UPC), 1 Meter, Single-Mode Single-Core Pigtail, Φ2.0, Flame-Retardant Low-Smoke Zero-Halogen Fiber Optic Cable, BY-151S

4.4

56 Reviews

5.65AED

Tax :

**Product Specifications:**

**Brand:** BOYANG

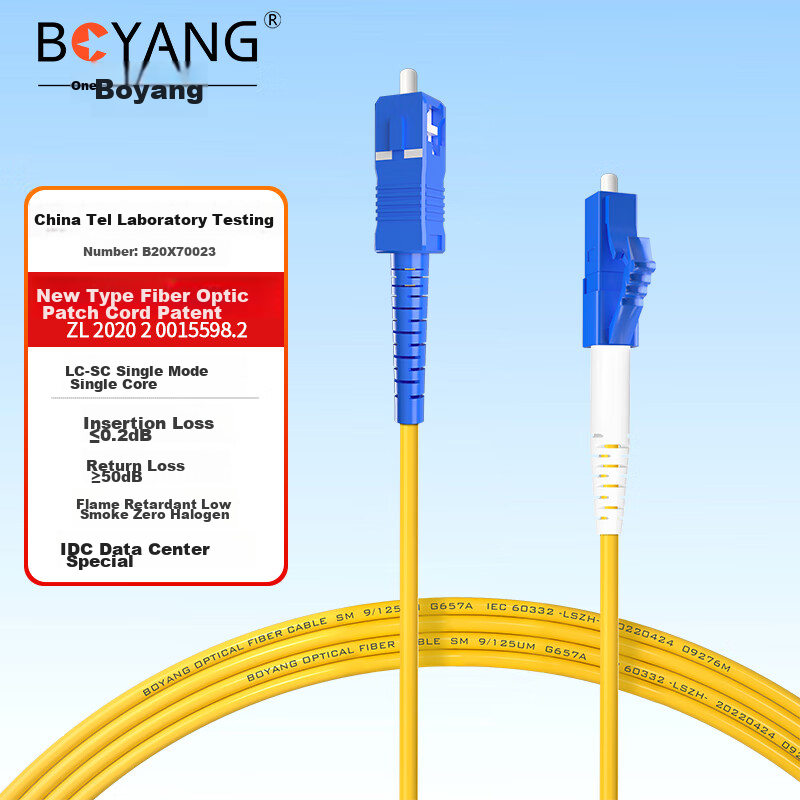

**Product Name:** LC-SC Single Mode Fiber Optic Patch Cord

**Application:** IDC Data Center, end-to-end fiber optic solutions

**Features:**

- Low insertion loss, high return loss

- Bending resistant, flame retardant

- Passed IDC flame retardant safety testing

- Tested and certified by China Telecom Equipment Testing Center

**Certifications:**

- National High-tech Enterprise

- Specialized New Technology Enterprise

- Patented technologies for fiber optic jumpers and fiber optic head fixing structures

**Technical Parameters:**

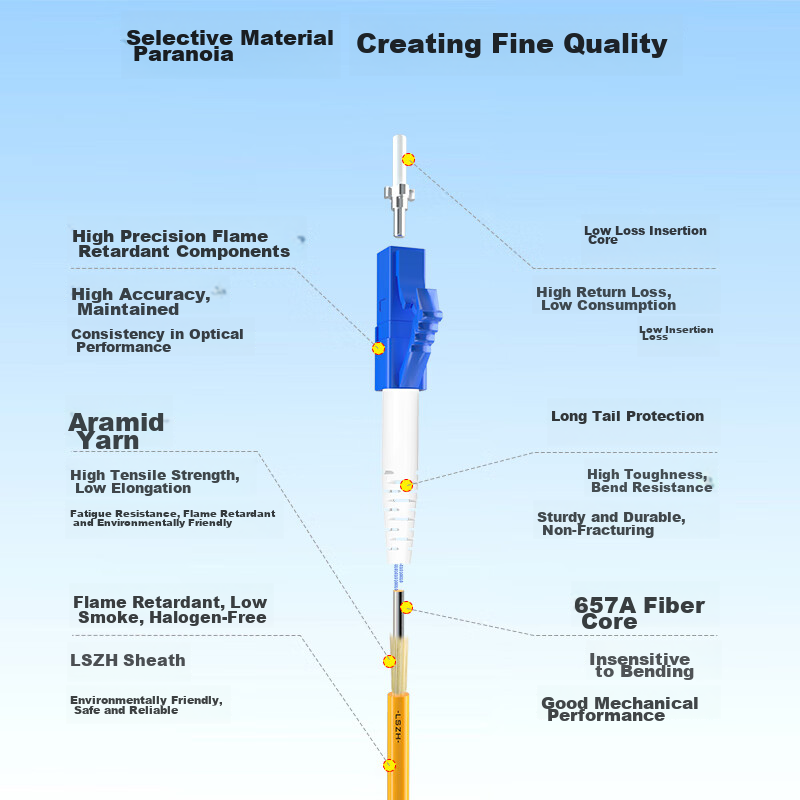

- Fiber Type: 657A single mode fiber

- Cable Diameter: 2.0mm

- Material: Aramid yarn with LSZH flame retardant coating

- Flame Retardant Rating: IEC60332-1-2

- Length: 1 meter

- Insertion Loss: Typical 0.20dB, Maximum 0.30dB

- Return Loss: ≥50dB

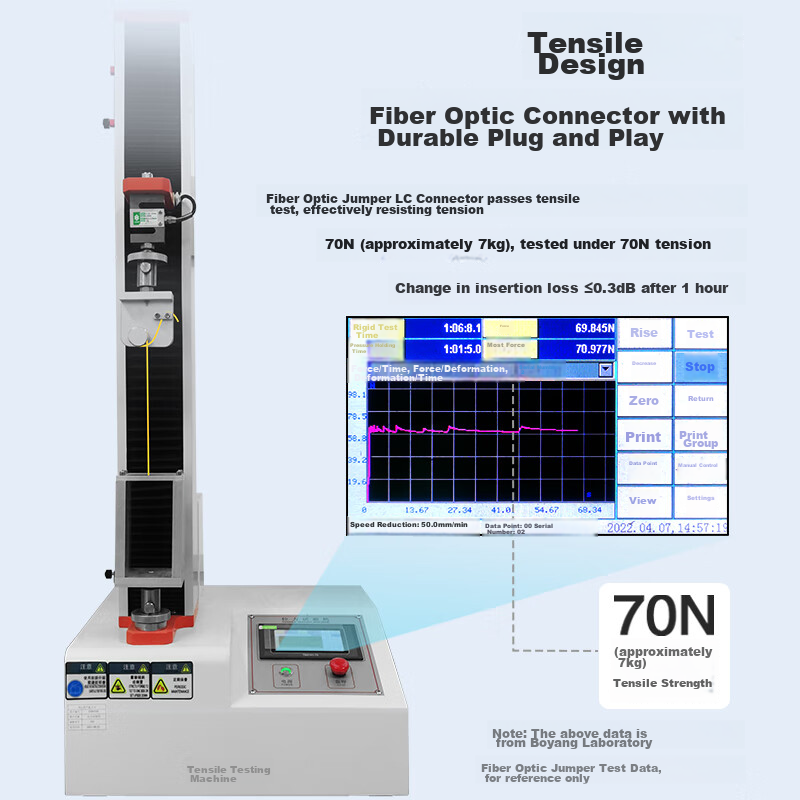

- Tensile Strength: 70N

- Operating Temperature: -40°C to 75°C

**Usage:** Suitable for high-speed and stable transmission in data centers, telecommunications networks, and industrial applications

**Safety:** Do not look directly at the fiber optic end face during signal transmission

**Quality Management:** Certified under ISO 9001:2000 international quality management system

**Standard:** Complies with C118120022200

Note: The above information is based on laboratory testing data and is for reference purposes only.
