**Product Specifications:**

**Brand:** MT-viki

**Model:** MT-E200

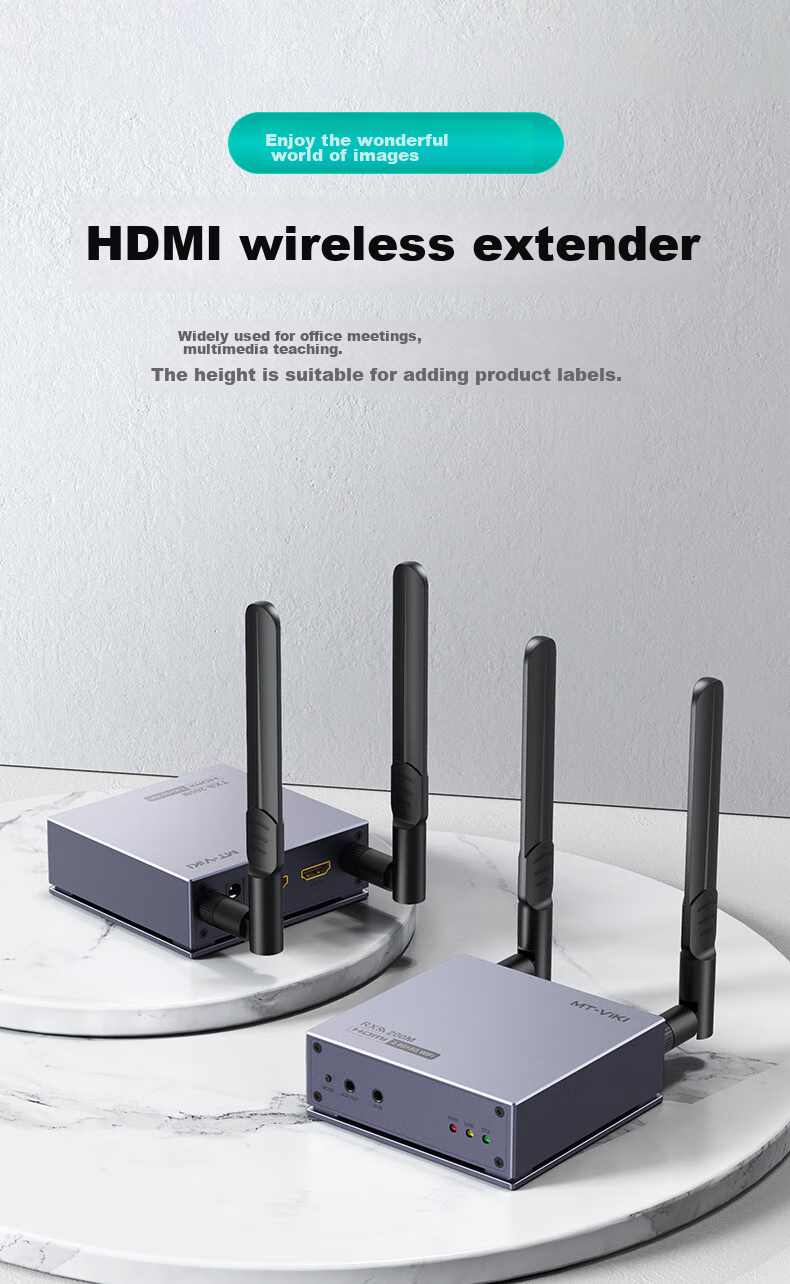

**Description:** Enjoy a wonderful world of images with the HDMI wireless extender, widely applicable in office meetings, multimedia teaching, home theaters, outdoor screens, gaming entertainment, and more.

**Features:**

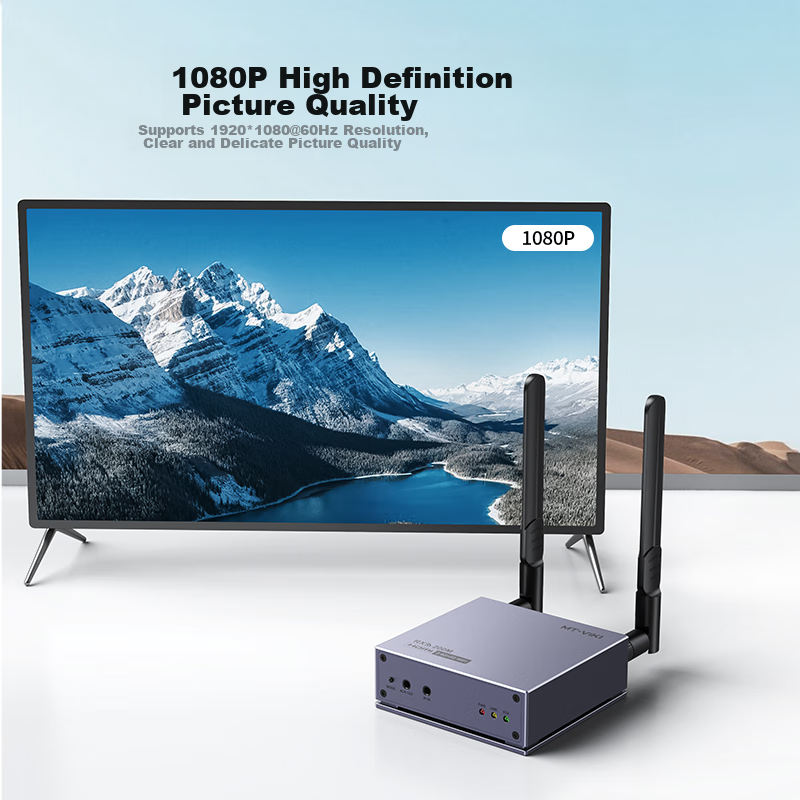

- HD quality with 1080P resolution support (1920*1080@60Hz)

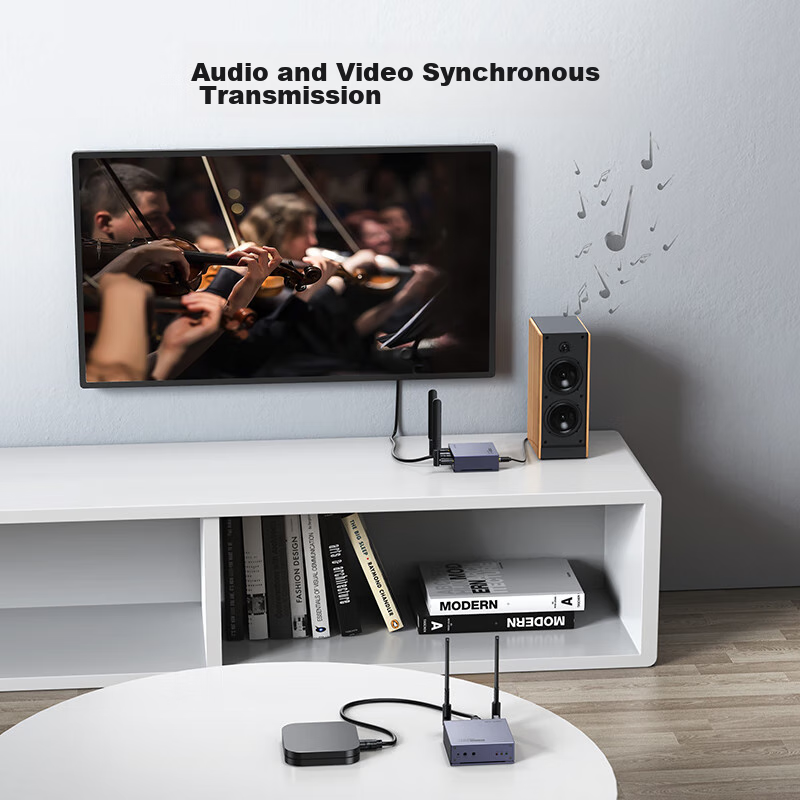

- Audio and video synchronization

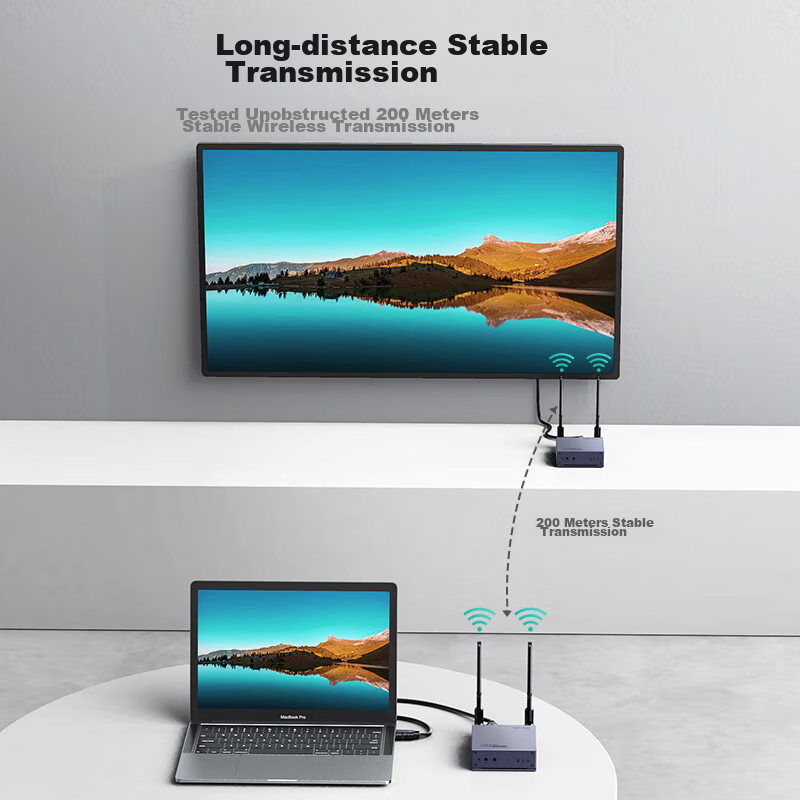

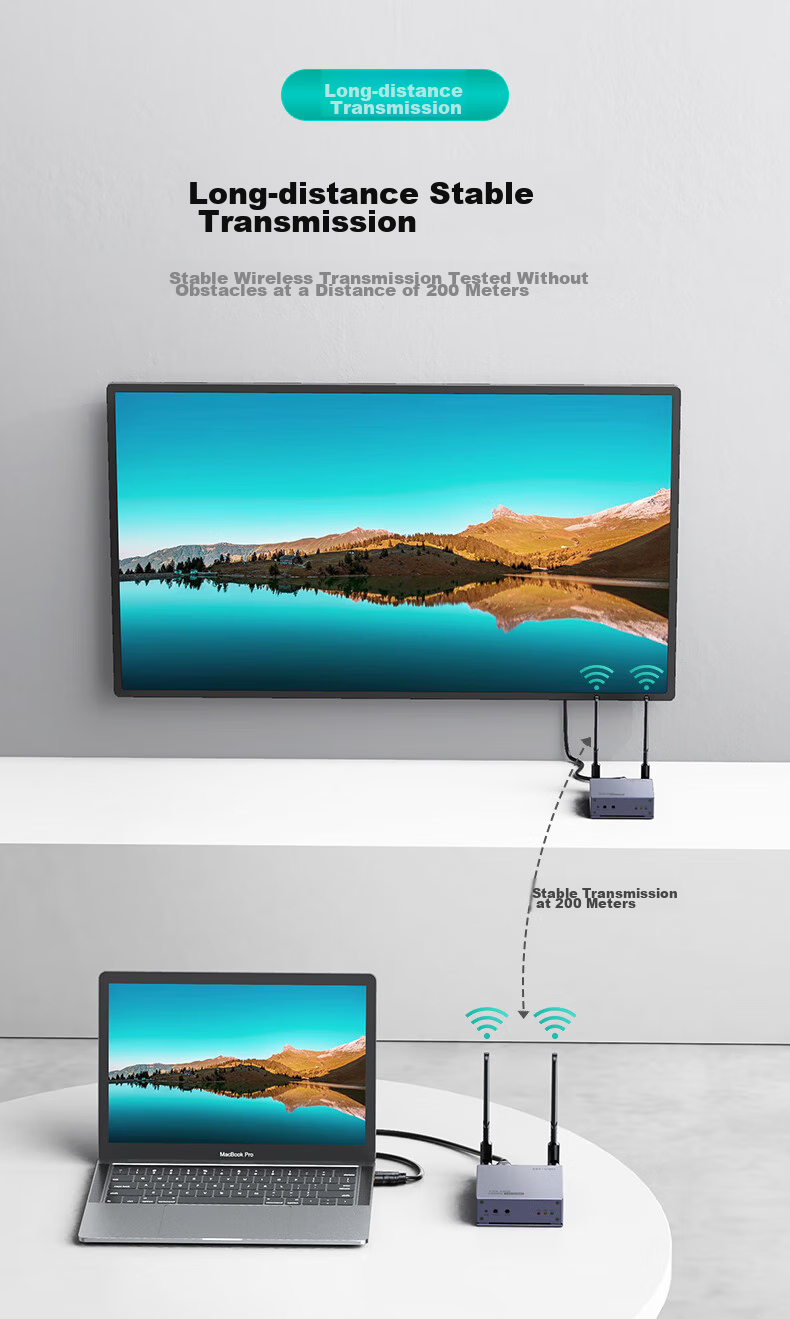

- Long-distance wireless transmission up to 200 meters

- High-definition picture quality

- Aluminum alloy casing

- Infrared remote control

- Independent audio port

- Adaptive resolution

- Engineering-grade chip

- HDMI local loop out

**Additional Features:**

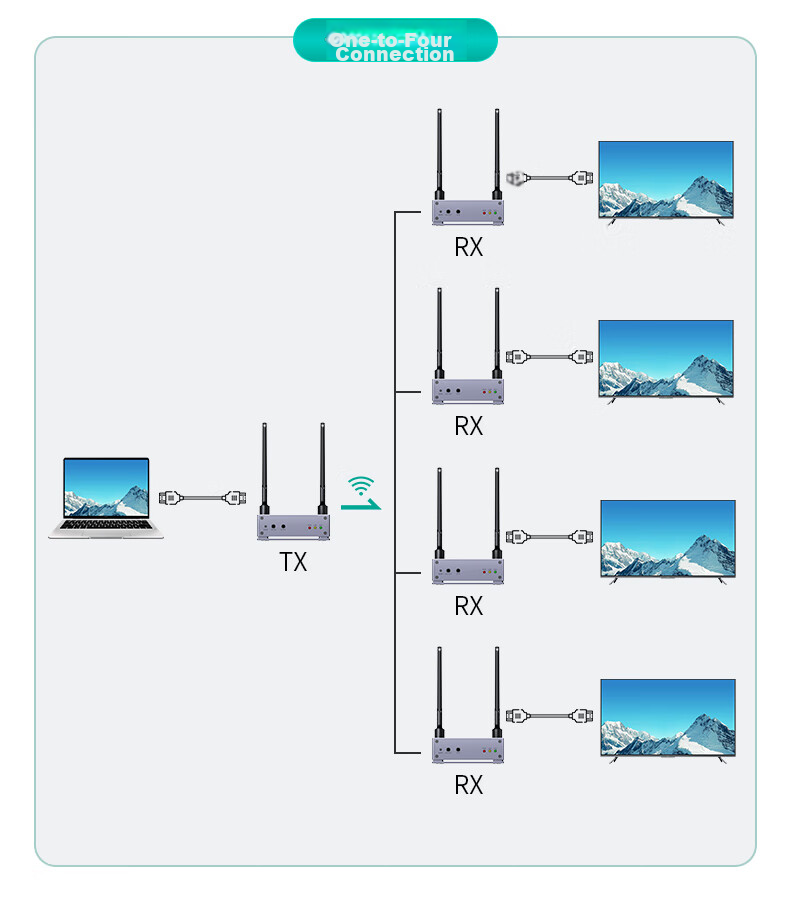

- Supports one-to-one and one-to-four wireless transmission

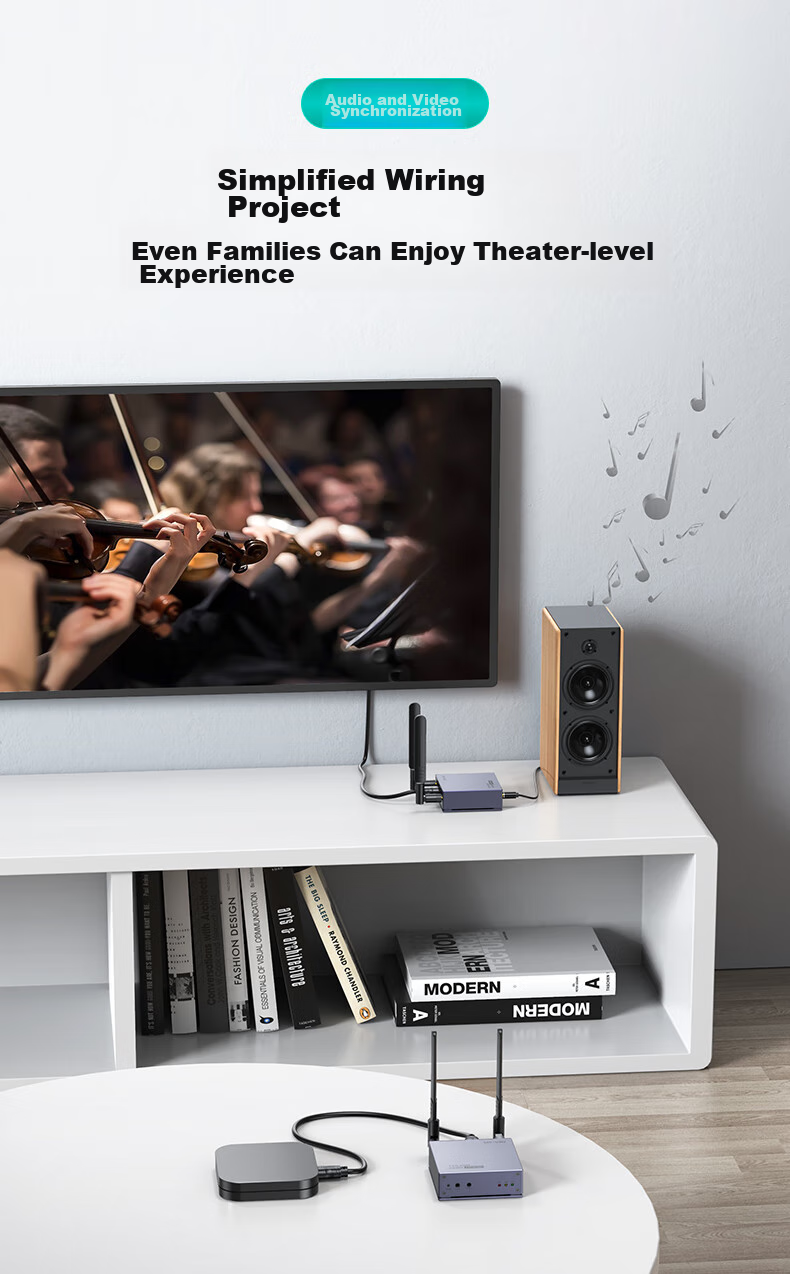

- Simplified wiring with audio and video synchronization

- Fashionable design with modern architecture

- Efficient chip for zero latency and smooth performance

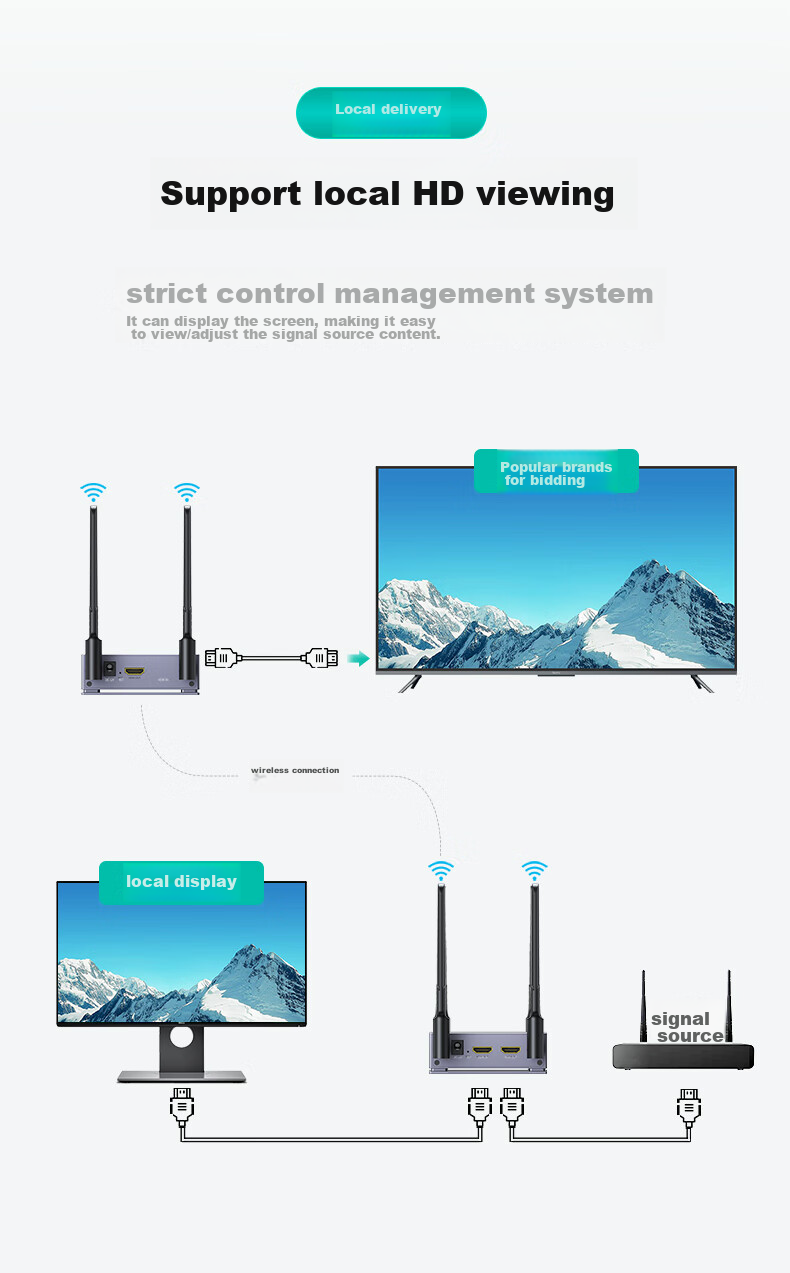

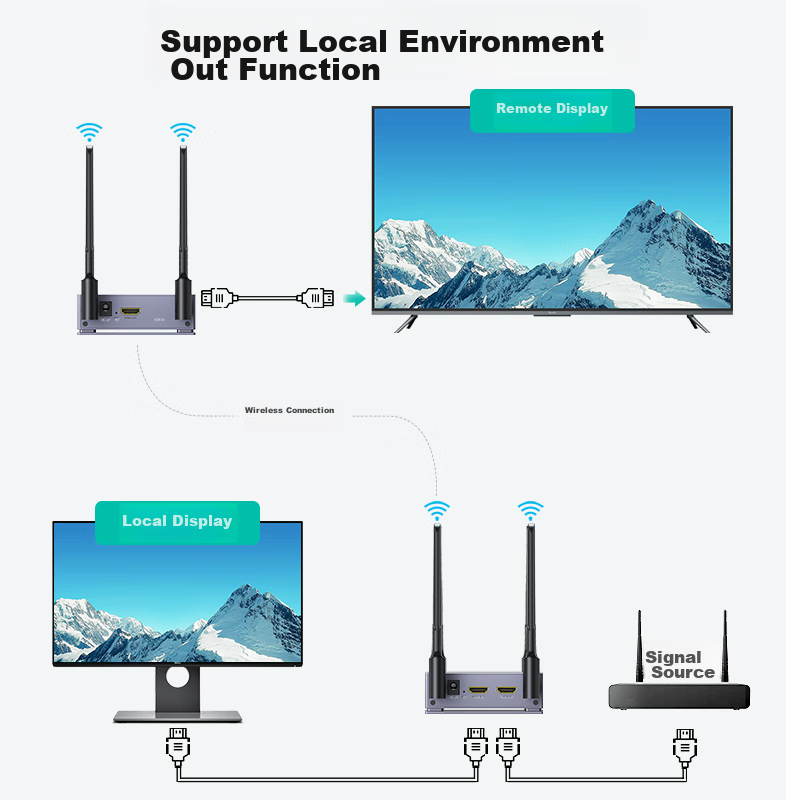

- Local loop out for high-definition viewing

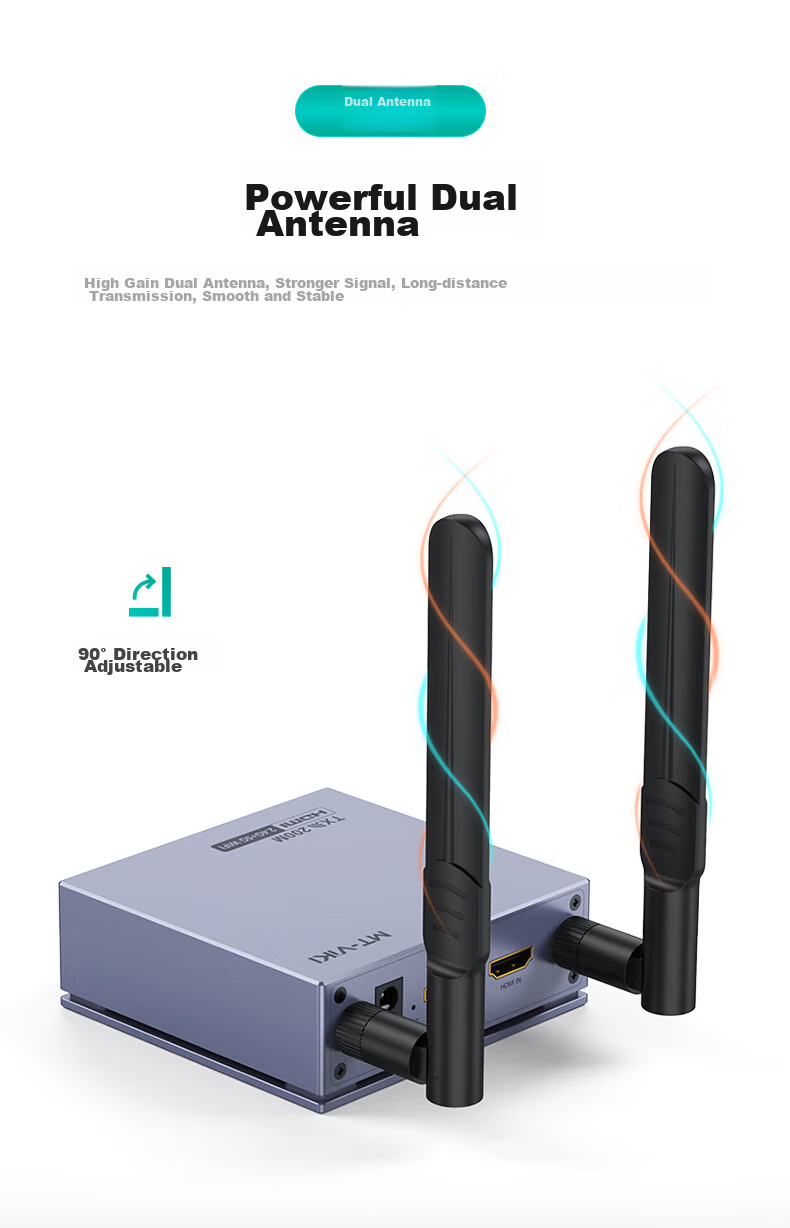

- Dual antennas for strong signal reception

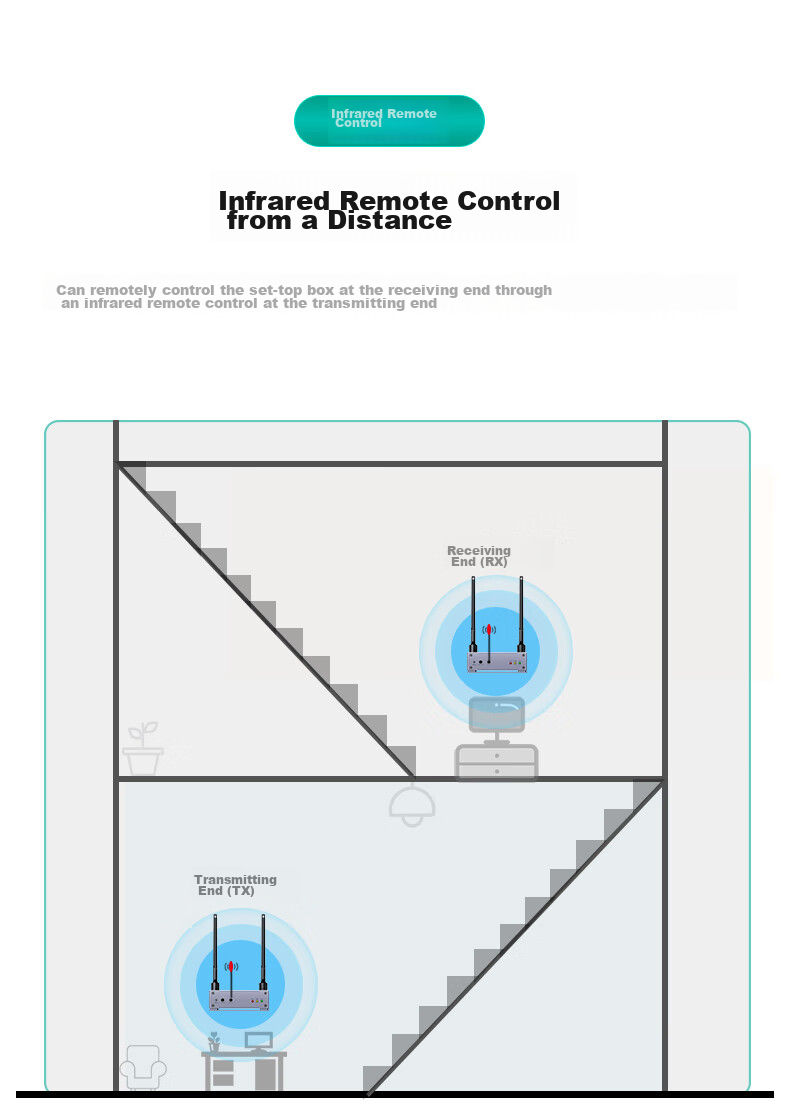

- Infrared remote control for remote operation

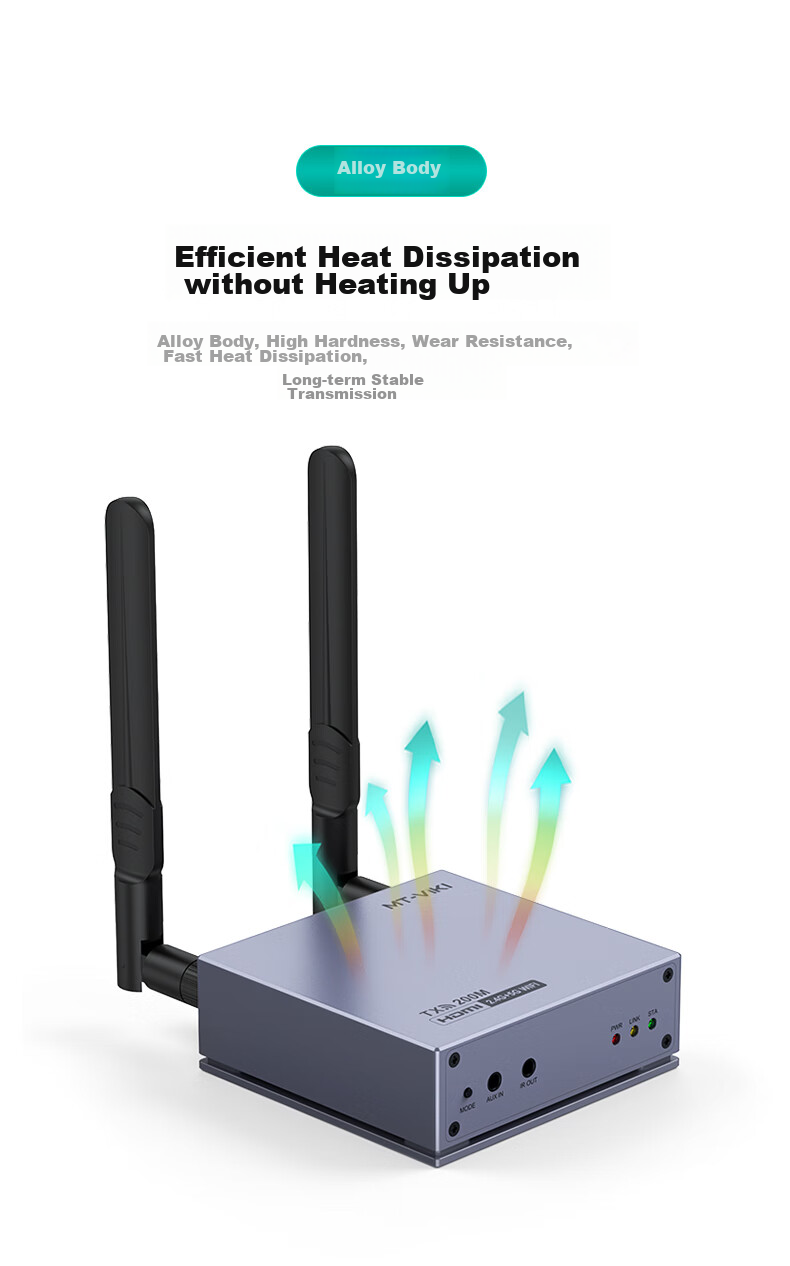

- Alloy body for efficient heat dissipation and durability

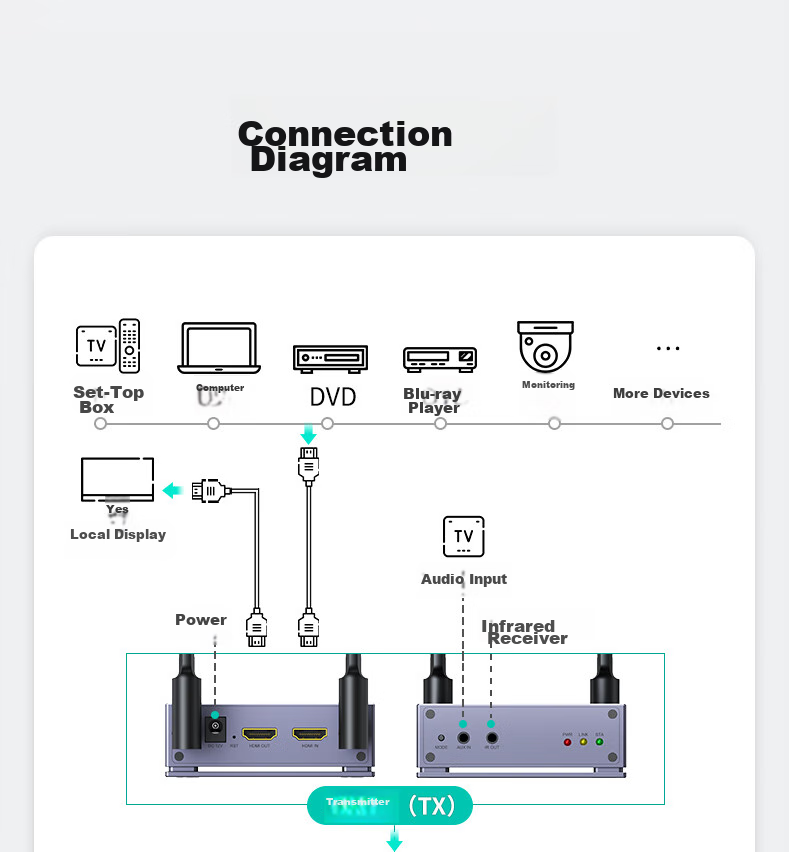

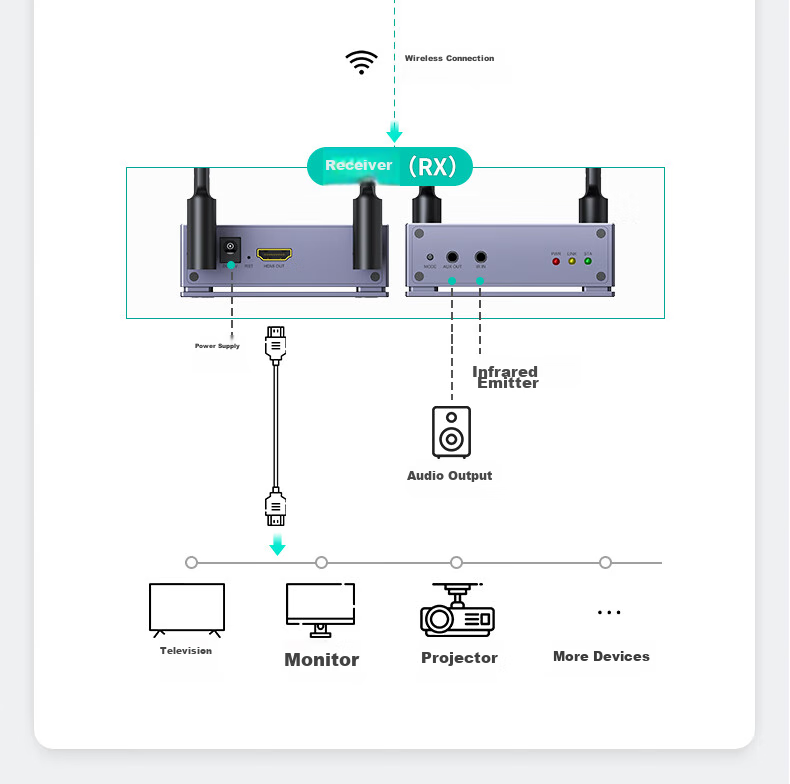

**Connection Diagram:**

- Transmitter (TX): Connects to set-top box, computer, DVD player, Blu-ray player, monitor, and more

- Receiver (RX): Connects to TV, audio input, power source, infrared receiver port, and transmitter (TX)

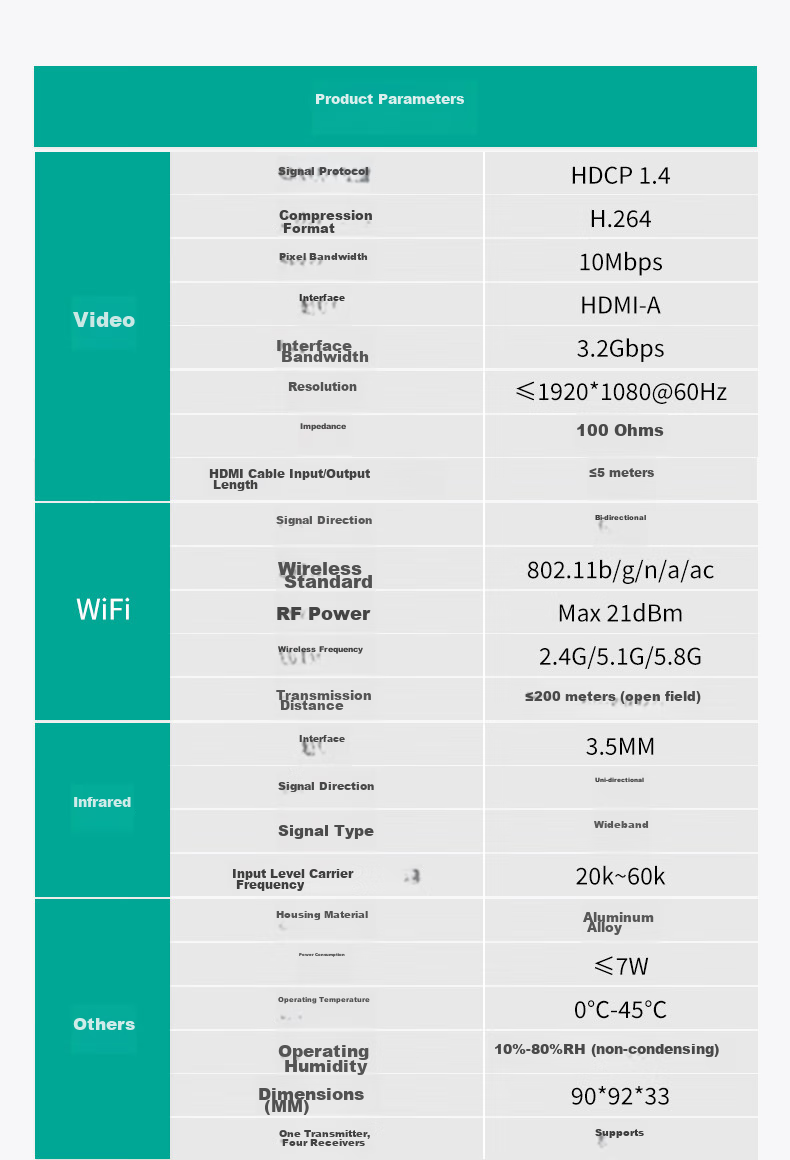

**Product Parameters:**

- Signal Protocol: HDCP 1.4

- Compression Format: H.264

- Pixel Bandwidth: 10Mbps

- Interface: HDMI-A

- Video Interface Bandwidth: 3.2Gbps

- Resolution: ≤1920*1080@60Hz

- Impedance: 100 ohms

- HDMI Cable Input/Output Length: ≤5 meters

- Wireless Standard: 802.11b/g/n/a/ac

- RF Power: Max 21dBm

- Wireless Frequency: 2.4G/5.1G/5.8G

- Transmission Distance: ≤200 meters (open area)

- Interface: 3.5mm

- Infrared Signal Type: Broadband

- Power Consumption: ≤7W

- Operating Temperature: 0°C-45°C

- Operating Humidity: 10%-80% RH (non-condensing)

- Dimensions: 90*92*33 mm

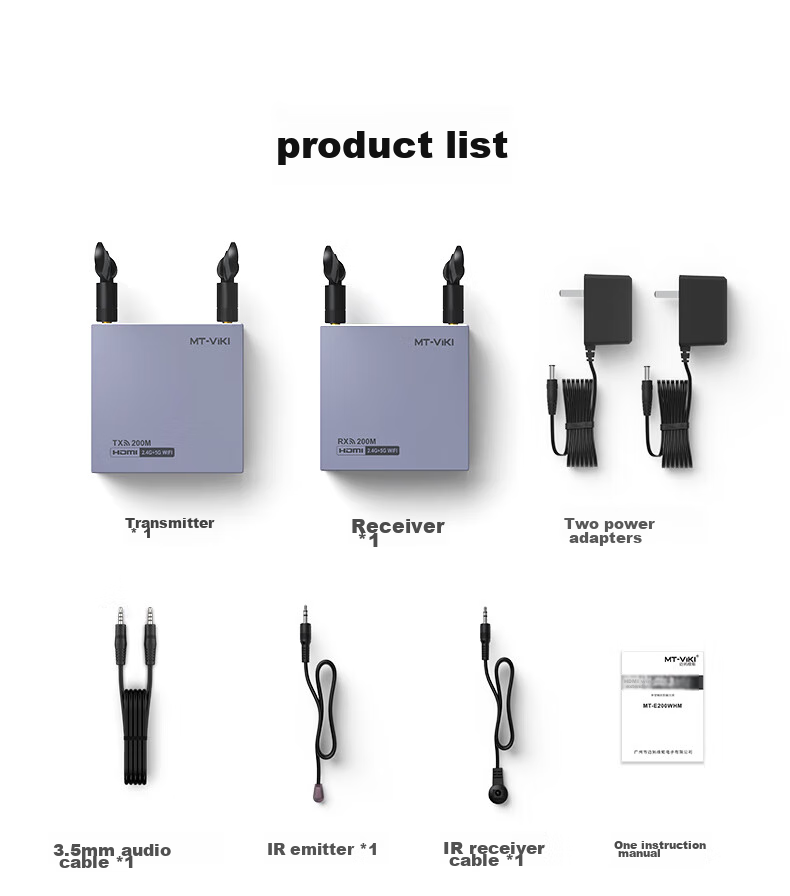

**Package Contents:**

- Transmitter (TXA200M) *1

- Receiver (RX3200M) *1

- Power Adapters *2

- 3.5mm Audio Cable *1

- IR Emitter Cable *1

- IR Receiver Cable *1

- User Manual *1

*Note: The dimensions of the transmitter and receiver are the same, measured manually with possible slight errors. Please refer to the actual product for accuracy.*
