**Product Specifications:**

**Brand:** TCHD Video

**Operating Hours:** 9:00-23:00, 365 days a year

**Technical Support:** Online support available

**Warranty:** 2 years

**Product Warranty:** 365 days free repair

**Certifications:** IMA, Quality Management System Certification, CERTIFCATE, Safety Management System Certification

**Product Model:** TC-749

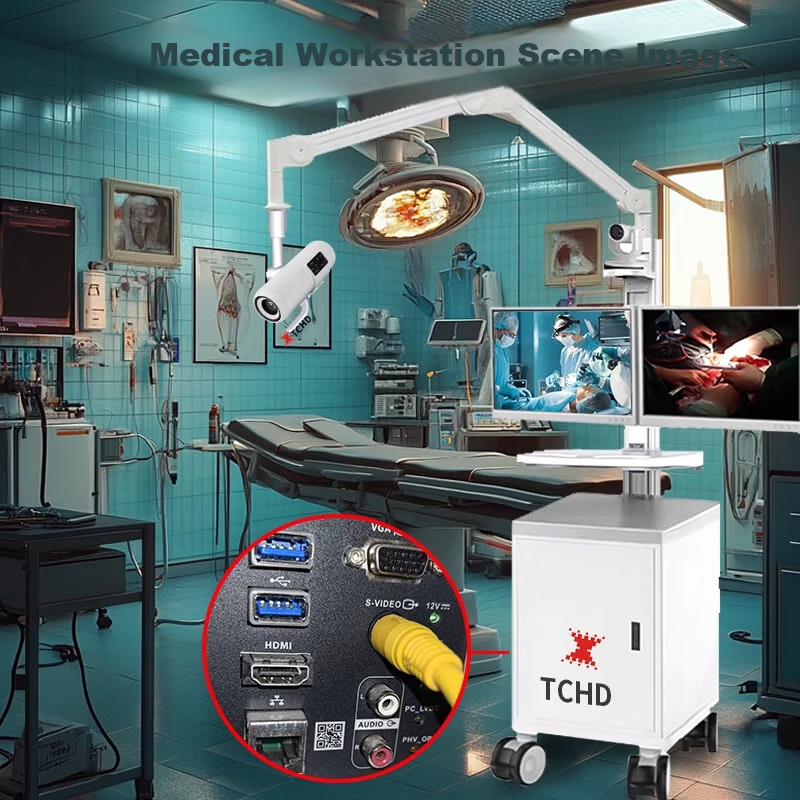

**Function:** High-definition HDMI capture card for medical imaging and device capture, suitable for hardware multi-platform live streaming

**Compatibility:** Supports various video recording software such as TCLiVSPOBSMIXVLC, VidBlaster, XSplit, AdobFlashMediaEnc, WVSNIS, TCLiveSP, OBS, vMix, VLC

**SDK Support:** Provides comprehensive multi-language SDK for C++ and DirectShow

**Technical Parameters:**

- **Model:** TC-749

- **Maximum Input Resolution:** 1920×1080p@60/50fps in → 1920×1080p@60/50fps out

- **Recording Mode:** Real-time software compression

- **Host Interface:** PCIe x1

- **Video Inputs:** 1x HDMI, 1x CVBS, 1x S-Video

- **Video Display Formats:** YV12, NV12, UY2, GB24, GB32, 10

- **Audio Format:** Stereo/16-bit/32000~48000Hz

- **Supported Operating Systems:** Windows 7/8/10/11, Server, XP, Linux

- **Recording Resolutions:** Various resolutions supported including 1920×1080p@60/50fps, 1024×768p@60fps, 1280×720p@60/50fps, etc.

- **Recording Video Mode:** H.264

**Package Contents:**

- Capture card

- USB cable

- 2U bracket

- AVS terminal conversion cable

- Warranty card/instruction manual/certificate of compliance

**Packaging Dimensions:**

- Length: 24cm

- Width: 16cm

- Height: 6.5cm

**Weight:** 0.3kg
